 SDP-1000 Triplex Mud Pumps (API-7K)

Specifications

Rated Horsepower: 1,000 HP
Rated Pump Speed: 130 SPM
Stroke Length: 9"
Maximum Liner Size: 7"
Piston Load : 101,550 lbs
Gear Ratio: 4.48:1
Approximate Weight: 24,800 lbs

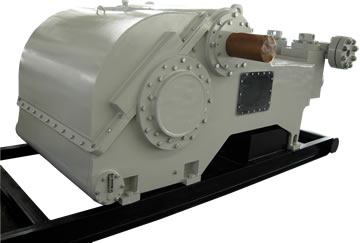

PZ-9 1000 HP triplex mud pump


  Performance

Liner Size, inches
Displacement
Maximum Pressure, psi
Pump RPM
JackShaft RPM
Gallon Per Revolution
Gallon Per Minute
7
4.5
585
2,639
130
582
6-1/2
3.88
504
3,060
6-1/4
3.59
466
3,310
6
3.30
430
3,592
5-1/2
2.78
361
4,274
5
2.29
298
5,000
4-1/2
1.86
242
5,000
4
1.47
191
5,000

   Ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.
